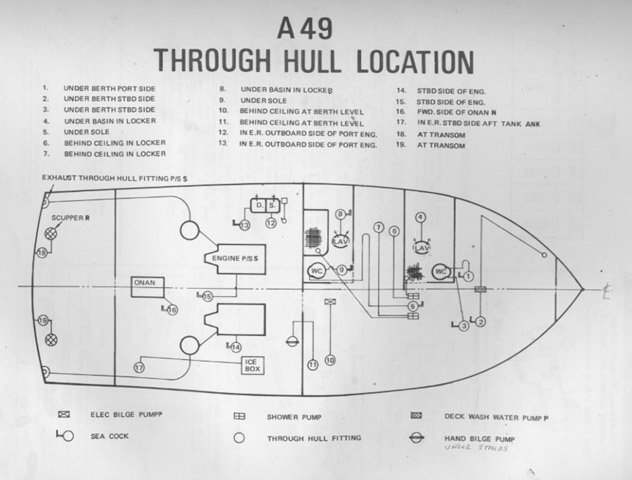

This diagram was taken from the A49 manual.  The diagram is not correct at this date (3/2002).  We will be updating it as we complete the plumbing tasks this summer.  One can see immediately that there was no provision on the original vessel for black water storage.  It was simply pumped overboard!
